“Jam” is something I put on my toast.

By LtCol Freddie Blish, USMC (Ret) is currently the General Manager of ROBAR Companies, Inc and a Range Master at Gunsite Academy, Inc.

At ROBAR Companies, Inc. we often receive phone calls or emails from customers stating that their gun is “jamming.” Without sounding like a real a$$hole, Jam is something I put on my toast. Words have meanings, in this instance it is always important to use correct terminology so that we can properly diagnose problems with firearms. There are Malfunctions and Stoppages, per Marine Corps MCRP 3-01A & B and Army TM 9-1005-319-10 the definition of each are:

Malfunction occurs when a part of the rifle fails to operate according to the specification.  Anytime a rifle has a malfunction it will need to be fixed by an armorer or a qualified individual.

Stoppage occurs when something interrupts the cycle of operation (hence stoppage).  A stoppage can easily be fixed by the shooter and does not require an armorer or qualified individual to fix it.

The point is that shooters need to understand the Cycle of Operation of their semi-auto pistols, rifles and shotguns, in order to properly understand what type of Malfunction or Stoppage has occurred. Otherwise the cause cannot be properly attributed nor corrected. The majority of the stoppages that occur with semi-auto firearms are magazine related.

Let’s start with the Cycle of Operation for a semi-auto firearm:

CYCLE OF OPERATION

Every semi-auto firearm performs basic steps in order to operate efficiently.  A minor deviation from any of these steps can cause a malfunction or deficiency in the weapons ability to fire the round.  The cycle of operations for a semi-auto firearm is:


a. Feeding:  Once rearward motion causes the slide or bolt carrier group to clear the top of the magazine, the expansion of the magazine spring forces a new round into the path of the slide breach face or bolt.  After the recoil spring or action spring overcomes and absorbs the rearward motion of the slide or bolt carrier group, it expands and sends the slide or bolt carrier group forward with enough force to strip a round from the magazine and start pushing it up the feed ramp.

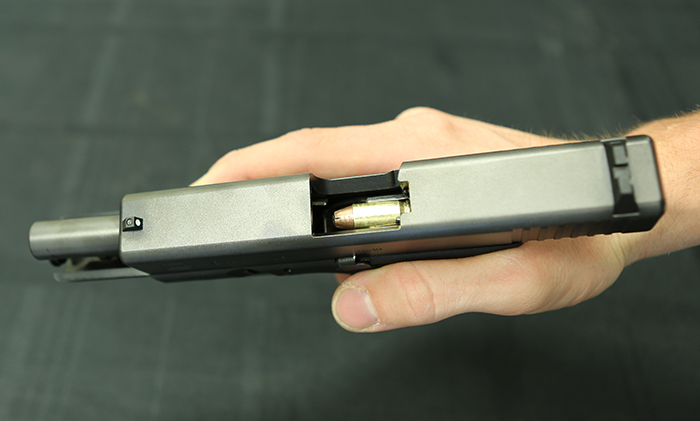

GLOCK ROUND IN MAG OPEN SLIDE

b. Chambering:  As the slide or bolt carrier group continues to move forward, pushing a fresh round in front of it, the face of the slide or bolt thrusts the new round into the chamber.  The extractor claw grips the rim of the cartridge case.  On bolts, the ejector is forced into its hole, compressing the ejector spring.

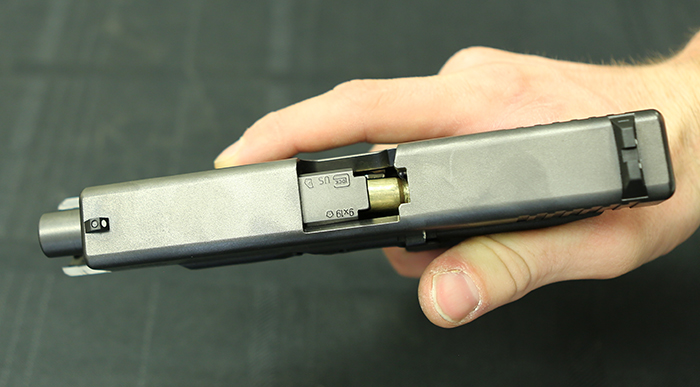

GLOCK HALF CHAMBERING ROUND

c. Locking:  As the slide or bolt carrier group continues to move forward; the locking lugs on the barrel are forced up against the locking lugs of the slide, or the bolt-locking lugs are forced against the barrel extension and the bolt cam pin is forced along the cam track, then the bolt rotates and aligns the bolt locking lugs behind the barrel extension locking lugs.  The weapon is ready to fire.

d. Firing:  The hammer releases and strikes the head of the firing pin or the disconnector releases the striker, driving the firing pin into the round’s primer.  The primer ignites the powder in the cartridge.  Gas generated by the rapid burning of powder propels the projectile through the barrel.  The slide and barrel locking lugs disengage and the slide begins to move rearward or after the projectile passes the gas port, a portion of the expanding gas enters the gas port and gas tube.  The gas tube directs the gas rearward into the bolt carrier key and causes the bolt carrier to move rearward or directs the gas rearward against a piston that then causes the bolt carrier to move rearward.

e. Unlocking:  As the slide moves rearward the barrel is forced down by a link or cam on the barrel and frame to allow the barrel to unlock from the slide. Or as the bolt carrier moves to the rear, the bolt cam pin follows the path of the cam track located in the bolt carrier.  This causes the bolt assembly to rotate until the bolt-locking lugs are no longer aligned behind the barrel extension locking lugs.

f. Extracting:  As the slide or the bolt carrier group continues to move to the rear, the extractor claw withdraws the cartridge case from the chamber.

g. Ejecting:  If the ejector is located on the frame it is fixed in place and does not move. If it is located on the bolt face it and the ejector spring will get compressed into the bolt body by the base of the cartridge case.  The rearward movement of the slide or bolt carrier group allows the nose of the cartridge case to clear the front of the ejection port. At that point, on frame mounted ejectors, the rear of the cartridge case will impact the ejector. On bolts the cartridge case is pushed out by the ejector when the ejector spring decompresses.

h. Cocking:  Continuing its rearward travel, the slide or bolt carrier overrides the hammer, forces it down into the frame or receiver, compresses the hammer spring or striker spring, and causes it to engage the lower hammer hook or disconnector.

With a better understanding of how a semi-auto firearm functions, let’s discuss Malfunctions and Stoppages. It is important to know what type of Malfunction or Stoppage is occurring so that the shooter and armorer or gunsmith to properly diagnose what is occurring, why it is occurring, and how to properly correct the problem.
There are four types of Malfunctions and Stoppages that have been codified at Gunsite Academy, where the modern technique of firearms manipulation began and still continues. They are:

Type IFailure to Feed or Failure to Fire. Failure to feed can be the magazine, the feed ramp needing polishing, or the chamber being too tight. Failure to fire is most often ammunition related.

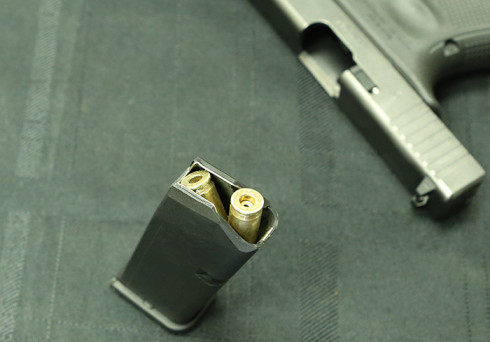

GLOCK MAG PROBLEMS

Type IIStove Piping – Vertical or Horizontal. Stove Piping is often a bad ejector or an interruption in the cycle of operation.

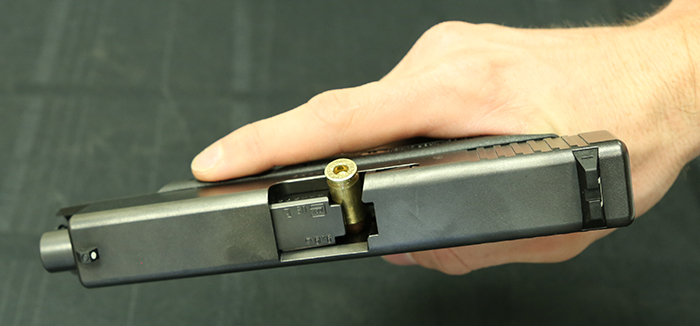

GLOCK STOVE PIPE

Type IIIFailure to Extract or Double Feed (two live rounds trying to enter the chamber).Typically with handguns it is a failure to extract, meaning that an empty case is stuck in the chamber and a live round is trying to chamber. Double feeds typically only occur with staggered column magazines in semi-auto rifles.

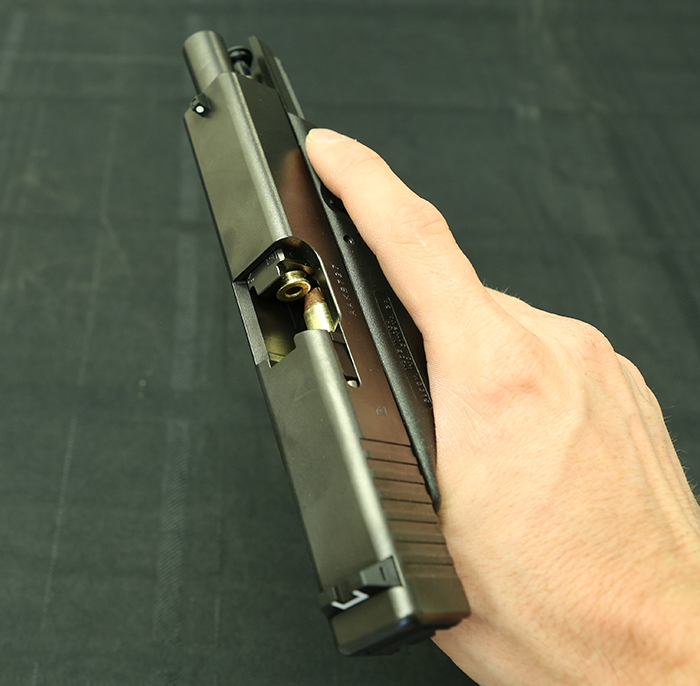

GLOCK FAILURE TO EJECT

Type IVFailure to go fully into battery. This is usually an obstruction in the chamber or damaged ammunition.

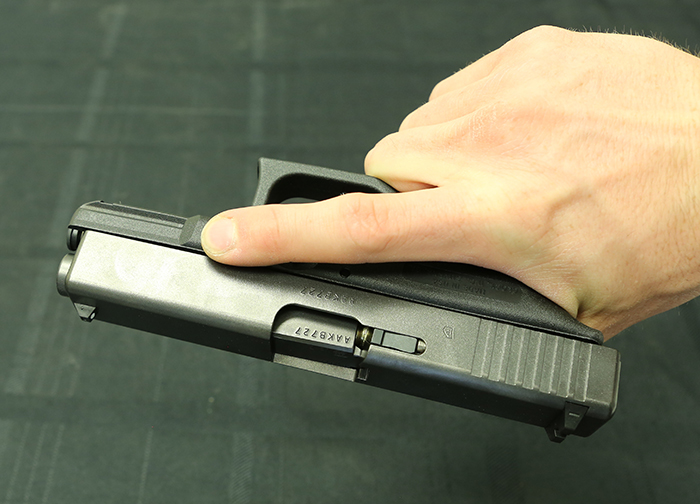

GLOCK FAILURE TO GO INTO BATTERY

Understanding both the Cycle of Operation for a firearm, as well as the Types of Stoppages we can now better determine what is occurring in order to make a better diagnosis:

1. Feeding

Type I – Failure to Feed – 1) Bad magazine, 2) Bad feed ramp geometry or rough surface causing drag or friction, 3) Bad magazine catch not holding magazine in its proper position, 4) Poorly fit extractor

Type III – Double Feed – 1) Bad magazine, 2) Operator error

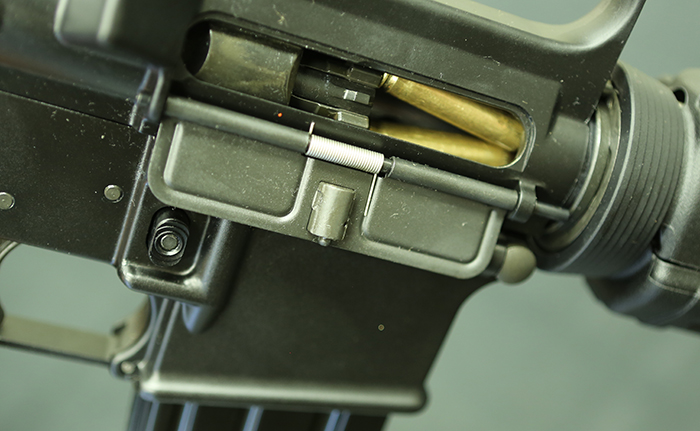

AR DOUBLE FEED

2. Chambering

Type III – Double Feed – 1) Bad magazine, 2) Operator error

Type IV – Failure to Chamber or “go into battery” – 1) Chamber too tight, 2) Debris in the chamber, 3) Weak Recoil Spring

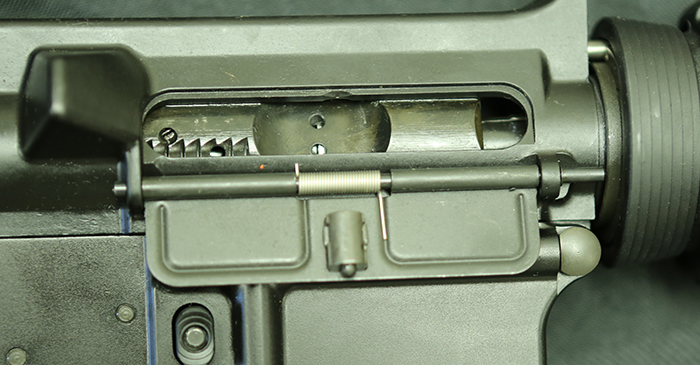

AR FAILURE TO GO INTO BATTERY

3. Locking

Type IV – Failure of the barrel and slide or bolt not properly locking up – 1) Poorly fit barrel, 2) Chamber dirty or contains debris, 3) Firearm not properly lubed, 4) Burs on locking lugs

4. Firing

Type I – Failure to Fire – 1) Bad primer in cartridge, 2) Broken Firing Pin or Striker, 3) Debris in the firing pin/striker channel, 4) Weak Striker or hammer spring

5. Unlocking

                Type III – Failure to extract – 1) Over pressured cartridge stuck in chamber, 2) Burred or damaged locking lugs

6. Extraction

Type III – Failure to Extract – 1) Bad Extractor, 2) Debris in chamber, 3) Bad Ammo

AR FAILURE TO EJECT

7. Ejection

Type II – Failure to Eject or Stove Pipe – 1) Broken Ejector, 2) Weak Extractor not holding the round against breach face until meets empty case meets the ejector, 3) Broken or Weak ejector or ejector spring not pushing firmly enough against the empty case to eject it from the receiver.

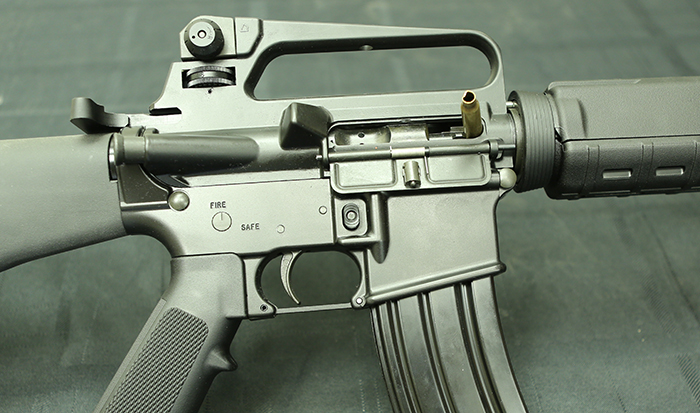

AR STOVE PIPE

8. Cocking

                Type I – Failure to Fire – 1) Weak or broken trigger or hammer springs, 2) Broken Trigger or Hammer, 3) Weak or broken disconnector or disconnector spring, 4) Damaged sear or weak sear spring

While the above information covers most of the Malfunctions and Stoppages that do occur, it doesn’t cover everything. However, armed with the aforementioned knowledge a shooter can either resolve the Stoppage on either the one way range or the two way range, or be better able to explain what is occurring to their firearm to an armorer or a gunsmith.

Finally, a firearm, much like an internal combustion engine, requires lubrication to function properly. While ROBAR’s superb NP3 and NP3 Plus platings help minimize the requirement for lubrication, it is always wise to use a quality lubricant like SEAL1, RAND CLP, EWL Slip 2000, MPRO7, etc. on your firearm.
